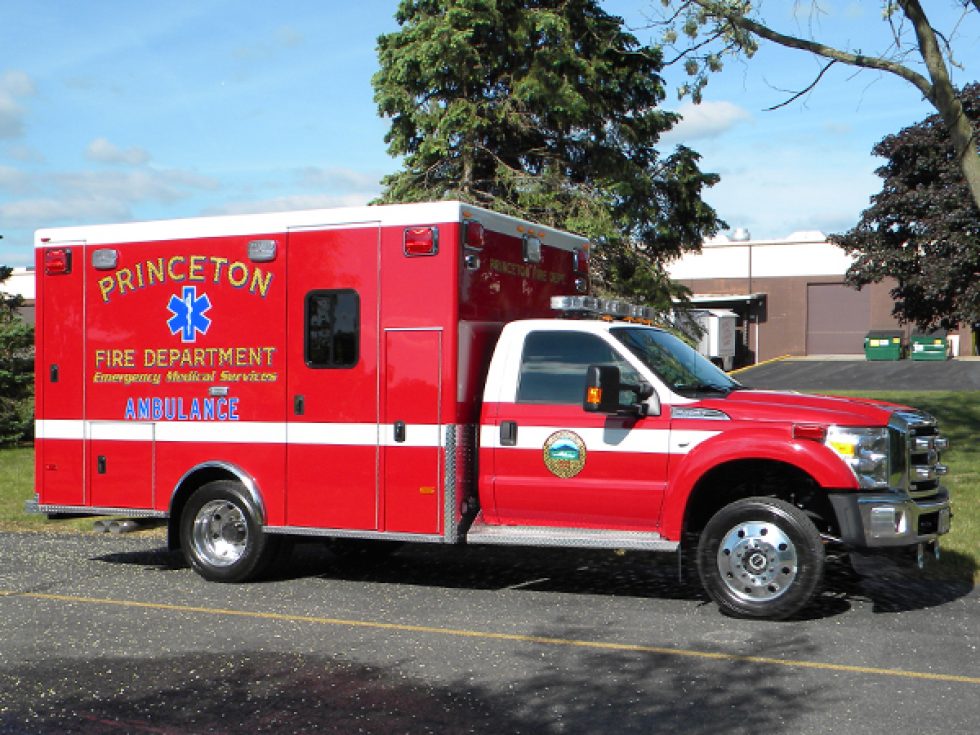

Type 1 Classic on a F450 chassis

Description

Overall Vehicle Dimensions: Length: 289″ Width: 99″ Height: 112″ Exterior Modular Body Dimensions: Length: 156 1/2″ Width: 97″ Height: 91″ Interior Modular Body Dimensions: Length: 149″ Width: 90 3/4″ Height: 72″
Ford F450 Chassis Cab Four Wheel Drive
Wheelbase 189″ – 108″ CA Dual Rear
G.V.W. 16,500 lbs.
Powertrain/Functional:
Engine: 6.7L “Powerstroke” Turbo Diesel V8 300
hp @2800 RPM, 660 lbs torque @1600 RPM
Single Stage Turbo Charger
Instant Start Glow Plugs for quick engine starts
Diesel Emissions Fluid 6 gallon tank – mounted
behind frame rail on drivers side
Intelligent Oil Life Monitor
Engine block heater
Water Pump with 125 gallons per minute flow rate

Transmission: Heavy Duty “TorqShift” Six Speed
Select Shift Automatic with overdrive
Electronic Shift on the Fly with automatic locking
front hubs with manual override.
Brakes – 4 wheel Anti-lock Braking System
Traction Control – DRW Models
Fuel Capacity: 40 gallon single tank (aft axle)
Front Axle: 7,000 lb. Monobeam, Dana Super 60
Rear Axle: 12,000 lb. Full Floating Dana S110
Suspension:
Heavy Duty Front Coil Springs (7,000 lbs.)
Rear Liquid Spring Suspension (12,000 lbs)
Shock absorbers, front & rear 1.38″
Stabilizer bar, front and rear
Power Steering
Steering Damper

Delivery Date:

10/4/2015

Department Name:

Princeton FD

Location:

Princeton, MA

Categories:

Ambulances
