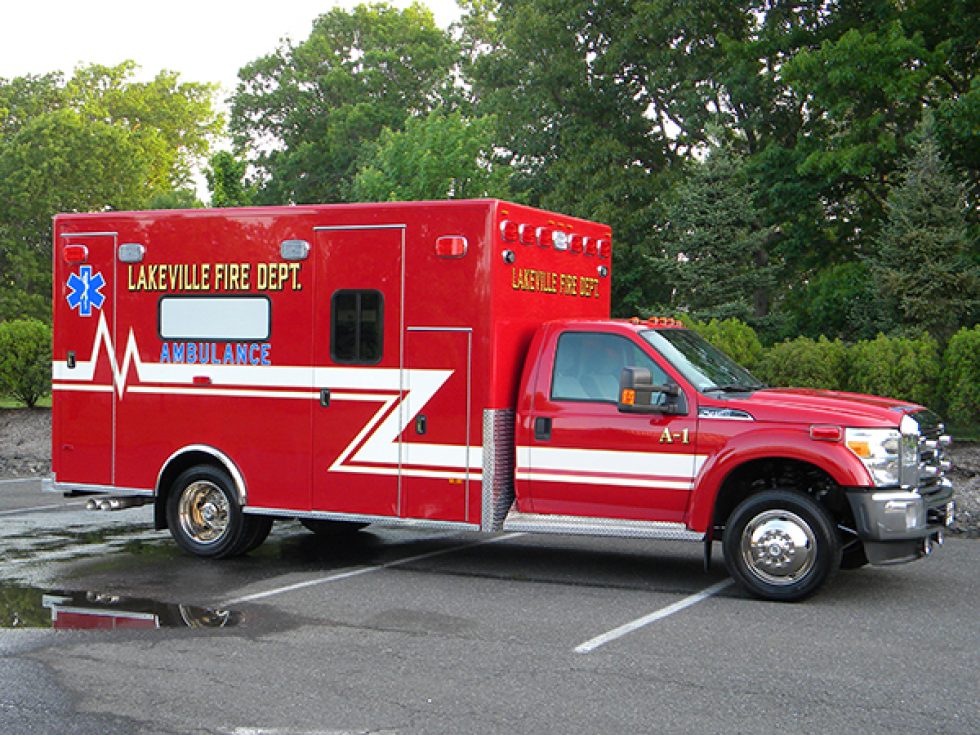

Type 1 Classic 170 on a F450 chassis

Description

Overall Vehicle Dimensions: Length: 302″ Width: 99″ Height: 115″ Exterior Modular Body Dimensions: Length: 170″ Width: 97″ Height: 94″ Interior Modular Body Dimensions: Length: 165″ Width: 90 3/4″ Height: 75″
Ford F450 Chassis Cab Four Wheel DriveWheelbase 189″ – 108″ CA Dual Rear G.V.W. 16,500 lbs.
Powertrain/Functional:Engine: 6.7L “Powerstroke” Turbo Diesel V8 300hp @2800 RPM, 660 lbs torque @1600 RPMSingle Stage Turbo ChargerInstant Start Glow Plugs for quick engine startsDiesel Emissions Fluid 6 gallon tank – mounted behind frame rail on drivers sideIntelligent Oil Life Monitor Engine block heaterWater Pump with 125 gallons per minute flow rate  Transmission: Heavy Duty “TorqShift” Six Speed    Select Shift Automatic with overdrive
Electronic Shift on the Fly with automatic locking   front hubs with manual override.
Brakes – 4 wheel Anti-lock Braking SystemTraction Control – DRW Models
Fuel Capacity: 40 gallon single tank (aft axle)
Front Axle: 7,000 lb. Monobeam, Dana Super 60Rear Axle: 12,000 lb. Full Floating Dana S110
Suspension:Heavy Duty Front Coil Springs (7,000 lbs.)Rear Leaf Springs, main & auxiliary (12,000 lbs)Shock absorbers, front & rear 1.38″Stabilizer bar, front and rearPower SteeringSteering Damper

Delivery Date:

10/4/2015

Department Name:

Lakeville FD

Location:

Lakeville, MA

Categories:

Ambulances
