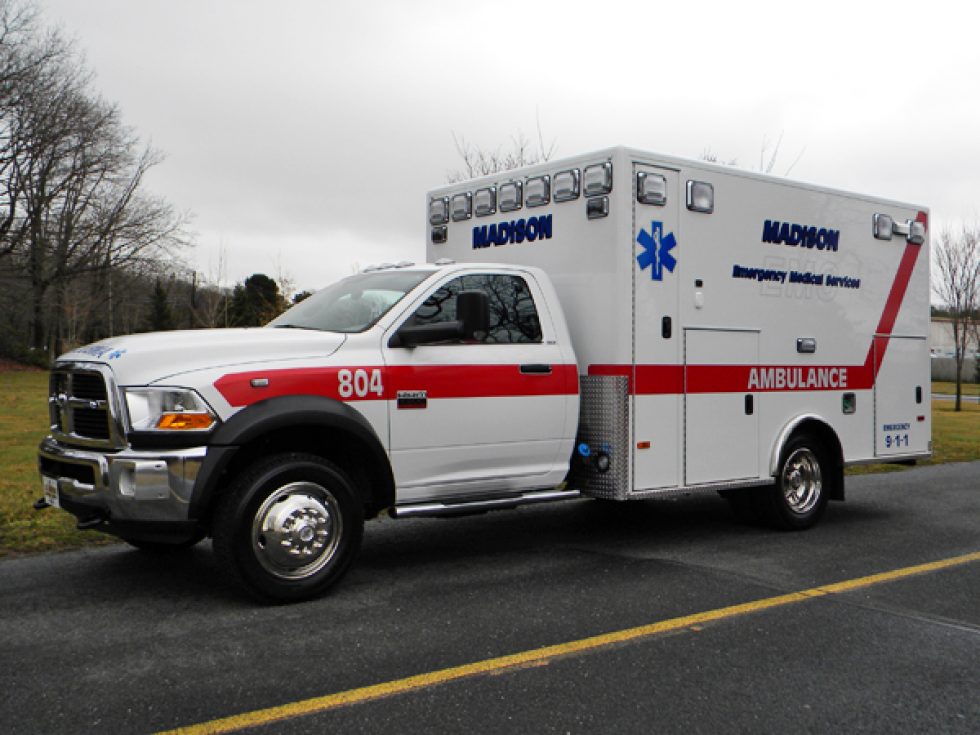

    WALK IN RESCUE ON A SPARTAN LTD CHASSIS

    Type I – Classic on Dodge D4500 chassis

    Description

    Overall Vehicle Dimensions:
    Length: 289″
    Width: 99″
    Height: 112″

    Exterior Modular Body Dimensions:
    Length: 156 1/2″
    Width: 97″
    Height: 91″

    Interior Modular Body Dimensions:
    Length: 149″
    Width: 90 3/4″
    Height: 72″

    Chassis:
    Wheelbase 168.5″ – 84″ CA Dual Rear
    G.V.W. 16,500 lbs.
    7,000 lb. Front Axle (Mono Beam)
    12,000 lb. Rear Axle

    Cummins 6.7L I-6 OHV direct diesel injection 24
    valve intercooled turbo diesel engine. (ETJ)
    Engine Block Heater
    Engine Oil Cooler
    Heavy Duty 6 Speed Automatic Aisin AS68RC
    Automatic Transmission with overdrive
    Transmission Oil Cooler
    Diesel Exhaust Brake NEN
    Stainless Steel Exhaust
    Rear axle 4.44 with Limited Slip differential
    Auto locking hubs
    Electronic Shift on the Fly Transfer Case
    Transfer Case Skid Plate Shield
    Fuel Capacity: 52 gallon single tank (aft axle)

    Ambulance Prep Group
    220 Amp Alternator
    1460 amp (total) dual batteries
    Voltage monitoring Auto Idle up System
    Cold Weather Group
    Engine block heater
    Winter Front Grille Cover
    Safety
    Dual air Bags, passenger side front-impact cancellable air bag.
    Front height adjustable seatbelts with front pre-tensioners
    4 wheel Antilock braking system
    Steering & Suspension:
    Hydraulic power-assist re-circulating ball steering Power Brakes- Four Wheel Disc
    Non-independent front suspension
    Front leading link suspension
    Front anti-roll bar
    Front coil springs
    HD front shocks
    Rigid Rear Axle
    Rear leaf suspension
    HD Rear anti-roll bar
    HD rear leaf springs
    HD Rear Shocks
    Front and Rear Wheels 19.5 x 6.00″ (steel)
    Tires:
    225/70R19.5 BSW AT (6 all traction)
    Continental Brand TUZ
    Full Size Spare Tire & wheel
    Comfort and Convenience
    Air Conditioning
    Cruise Control with steering wheel controls
    Analog instrumentation display includes; tachometer, oil pressure gauge, engine temperature gauge, voltmeter gauge, oil temperature gauge, transmission fluid temperature gauge, engine hour meter, compass, exterior temperature, tip computer, trip odometer
    Warning Indicators include: engine temperature, low oil level, low coolant, lights on, low fuel, low washer fluid, door ajar, transmission fluid temp.
    Intermittent front windshield wipers
    2GG SLT Cab Trim
    Bright Front Bumper with front tow hooks
    Chrome Grille
    Cloth 40/20/40 Bench Seat
    Front Seat Area Carpet
    Full cloth headliner
    Color Keyed Instrument Panel Bezel
    Leather wrapped steering wheel
    Overhead console
    Power Black Manual Fold trailer Tow Mirrors
    Power Locks
    Premium Vinyl Door trim w/’map pocket
    Power windows
    Remote Keyless entry
    Temperature & Compass Gauge
    Traveler/Mini trip Computer
    Radio Media Center 130 CD/MP3
    Light Group
    Glove Box Lamp
    Rear Dome w/on/off switch
    Rear view auto dim mirror
    Sun visors w/ illuminated vanity mirrors
    Under hood lamp
    Low Beam Daytime Running Headlamps
    Aero Composite halogen fully automatic headlamps
    Color Scheme:
    Exterior Color: Bright White Clear coat PW7
    Interior Color: Dark Slate/Medium Graystone

    Delivery Date:
    4/14/2013
    Department Name:
    Madison EMS
    Location:
    Madison, CT
    Categories:
    • Ambulances
    Ask About this Truck
