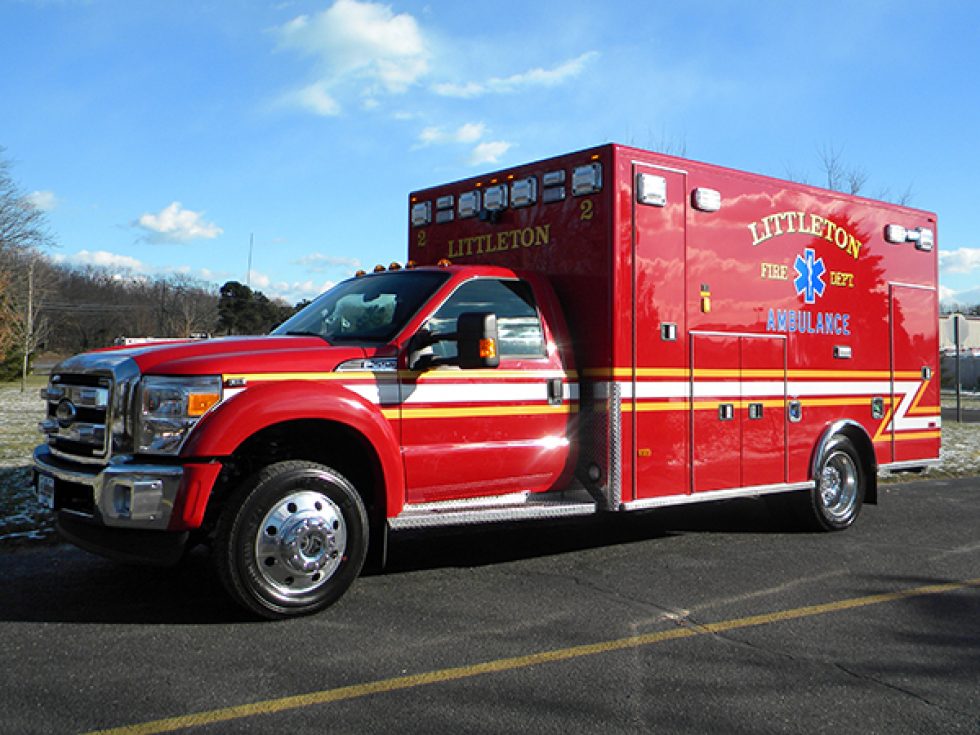

Type I – Classic on a Ford F-550 Chassis | New Fire Truck Delivery

Description

Overall Vehicle Dimensions:
Length: 302″
Width: 99″
Height: 112″

Exterior Modular Body Dimensions:
Length: 170″
Width: 97″
Height: 91″

Interior Modular Body Dimensions:
Length: 165″
Width: 90 3/4″
Height: 72″

Ford F550 Chassis Cab Four Wheel Drive
Wheelbase 189″ – 108″ CA Dual Rear
G.V.W. 18,000 lbs.
Powertrain/Functional:
Engine: 6.7L “Powerstroke” Turbo Diesel V8 300 hp.
Single Stage Turbo Charger
Instant Start Glow Plugs for quick engine starts
Diesel Emissions Fluid 6 gallon tank
Intelligent Oil Life Monitor
Engine block heater
Water Pump with 125 gallons per minute flow rate

Transmission: Heavy Duty “TorqShift” Six Speed
Select Shift Automatic with overdrive
Electronic Shift on the Fly with automatic locking
front hubs with manual override.
Brakes – 4 wheel Anti-lock Braking System
Traction Control – DRW Models
Fuel Capacity: 40 gallon single tank (aft axle)
Front Axle: 7,000 lb. Monobeam, Dana Super 60
Rear Axle: 13,660 lb. Full Floating Dana S110 Suspension:
Heavy Duty Front Coil Springs (7,000 lbs.)
Rear Leaf Springs, main & auxiliary (13,660 lbs)
Shock absorbers, front & rear 1.38″
Stabilizer bar, front and rear
Power Steering
Steering Damper
Rear axle 4.10 Limited Slip
Auxiliary transmission oil cooler
Dual OEM HD Alternators (total 355 amps)
Dual 750 CCA Batteries
Stationary elevated idle control (SEIC)

Safety/Security:
Driver/Passenger frontal and side air bag/curtain
Passenger side air bag deactivation switch
Belt-Minder – chime & flashing warning light on instrument panel if belts not buckled
Safety Belts – color coordinated with height adjustment (front outboard seating positions only)
SOS Post-Crash Alert System
Securi-lock Anti Theft Ignition
Tires:
Front & Rear LT225/70R 19.5G All Season (6)
Spare Tire: LT225/70R 19.5G (All Season)
Wheels; 10 hole Disc, 19.5″ x 6″ POLISHED ALUMINUM
Exterior Trim:
Dual Electric Horns
Chrome Front Bumper & Grille Surround
Mirrors: Black Manually Telescoping Trailer tow
w/Power-Heated Glass, integrated clearance lights and two way fold away
Front Tow Hooks
Lights – roof/marker clearance lights
Under Hood Service Light
Dual Beam Jewel Effect Headlights
XLT Interior Cab Trim:
Air Conditioning
Cloth Headliner, Map Pockets
AM/FM Radio w/CD/Mp3 Player/Clock
Interval Windshield Wipers
Tilt Steering Wheel/Speed Control – steering wheel mounted
Power Windows/Door Locks
Color-keyed Carpet / Floor Mats
Headlights on audible alarm
Dual overhead Map Light
Daytime Running Lights
Front seats, high series cloth – 40/20/40

Delivery Date:

12/20/2013

Department Name:

Littleton FD

Location:

Littleton, MA

Categories:

Ambulances
