    WALK IN RESCUE ON A SPARTAN LTD CHASSIS

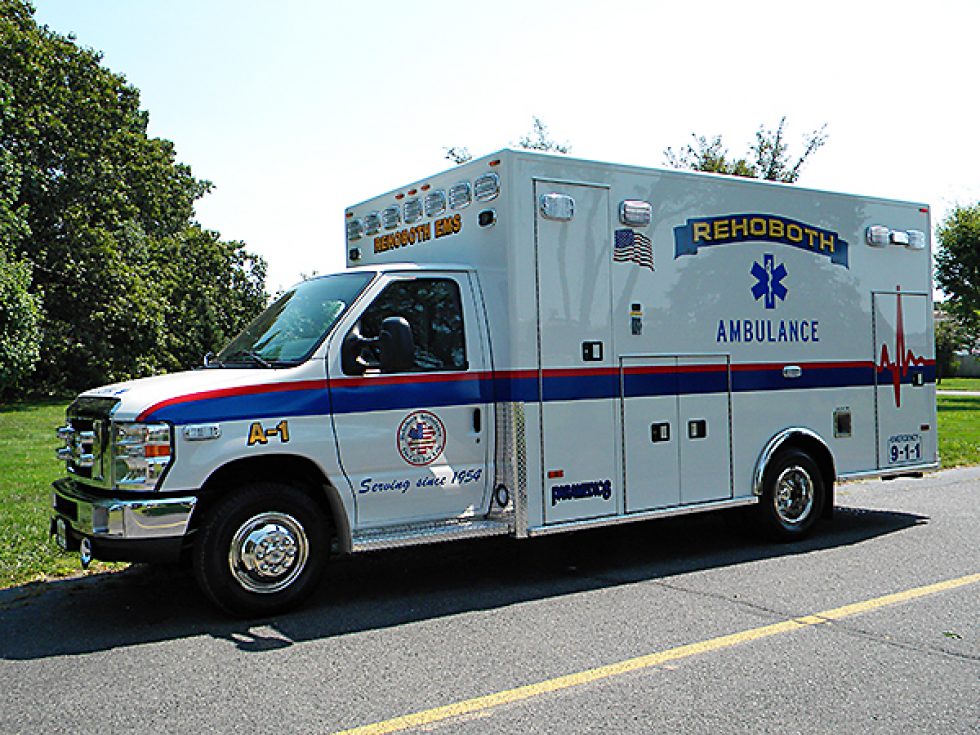

    Type 3 on Ford E-450 Chassis

    Description

    2013 Ford E-450 Super Duty Cutaway Cab and Chassis (GAS)

    Wheelbase 158″

    CA 100″

    G.V.W. 14,500 lbs.

    Powertrain/functional:
    Engine: 6.8L Electronic Fuel Injected Triton V10 Gasoline Engine
    305 HP / 420 ft.-lb. torque
    Engine Block Heater
    Transmission:
    Ford TorqShift Five Speed Automatic Transmission
    Auxiliary Trans Oil Cooler; Oil to Air and In-tank
    Front Axle 5,000 lbs. Twin I Beam
    Rear Axle 9,500 lbs. Dana 10.75″ HD

    Brakes: Four-wheel disc
    Four-wheel anti-lock brake system (ABS)
    Parking Brake Foot Operated, push to apply, pull release lever to Disengage
    Fuel Tank – 55 gallons aft of rear axle
    Suspension:
    Front Springs 5,000 lbs
    Rear Springs 9 600 lbs
    Stabilizer Bar, front and rear
    Shock Absorbers – Heavy Duty, front & rear
    Steering: Power, Ford XR-50 H.D. Gear
    Interior/Exterior Appearance Upgrade
    Air Conditioning
    Power Door Locks and Windows
    Chrome front bumper and grille
    Daytime Running Lights
    Dual Seal Beam ,fixed-lens headlamps
    Dual cloth captains chairs
    Color keyed carpeting & headliner
    Color keyed cloth sun visor
    Dual Electric Horns
    Mirrors – Power Adjust/Manual Telescoping Trailer Tow
    Light & Convenience Group
    Interval windshield wipers
    Gauges: Voltmeter, Oil Pressure, Temperature, Trip Odometer, Tachometer
    Speed Control & Tilt Steering Wheel
    AM/FM Radio w/CD/Clock
    Message Center in Dash
    Ambulance Prep Package 47A
    225 Amp Heavy Duty Alternator
    (1) 650 and (1) 750 CCA Heavy Duty Batteries
    4.:56 Rear Axle Ratio Limited Slip
    Auxiliary Heater – A/C Connector Package
    ETM52 Electronic Throttle control
    Safety/Security:
    Airbag – driver and front passenger
    Safety belts – medium flint with height adjustable D-ring
    Tires: LT225/75R 16E (six) All Season
    Spare Tire: LT225/75R 16E All Season
    Steel Valve Stems
    Wheels: 8 hole 16″ x 7″ Steel – painted white

    Exterior Color: Oxford White #YZ
    Interior Color: Medium Flint

    Overall Vehicle Dimensions:

    Length: 281″

    Width: 99″

    Height: 110″

    Exterior Modular Body Dimensions:

    Length: 176″

    Width: 97″

    Height: 92″

    Interior Modular Body Dimensions:

    Length: 165″

    Width: 90 3/4″

    Height: 75″

    Delivery Date:
    8/30/2013
    Department Name:
    Rehoboth Ambulance Service
    Location:
    Rehoboth, MA
    Categories:
    • Ambulances
    Ask About this Truck
