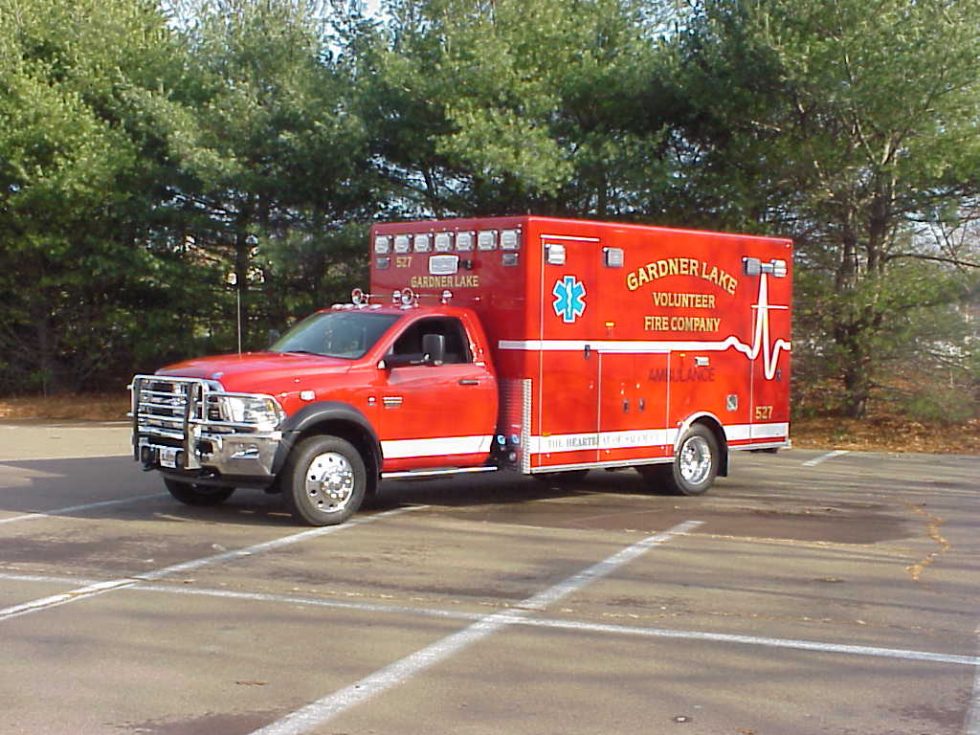

Type 1 – Classic ambulance on a Dodge 5500 chassis – New England Fire Equipment & Apparatus

Description

Overall Vehicle Dimensions:
Length: 302″
Width: 99″
Height: 115″

Exterior Modular Body Dimensions:
Length: 170″
Width: 97″
Height: 94″

Interior Modular Body Dimensions:
Length: 159″
Width: 90 3/4″
Height: 75″

Chassis:
G.V.W. 19,500 lbs.
7,000 lb. Front Axle (Mono Beam)
13,500 lb. Rear Axle

Cummins 6.7L I-6 OHV direct diesel injection 24
valve intercooled turbo diesel engine. (ETJ)
Engine Block Heater
Engine Oil Cooler
Heavy Duty 6 Speed Automatic Aisin AS68RC
Automatic Transmission with overdrive
Transmission Oil Cooler
Diesel Exhaust Brake NEN
Stainless Steel Exhaust
Rear axle 4.44 with Limited Slip differential
Auto locking hubs
Electronic Shift on the Fly Transfer Case
Transfer Case Skid Plate Shield
Fuel Capacity: 52 gallon single tank (aft axle)

Ambulance Prep Group
220 Amp Alternator
1460 amp (total) dual batteries
Voltage monitoring Auto Idle up System
Cold Weather Group
Engine block heater
Winter Front Grille Cover
Safety
Dual air Bags, passenger side front-impact cancellable air bag.
Front height adjustable seatbelts with front pre-tensioners
4 wheel Antilock braking system
Steering & Suspension:
Hydraulic power-assist re-circulating ball steering Power Brakes- Four Wheel Disc
Non-independent front suspension
Front leading link suspension
Front anti-roll bar
Front coil springs
HD front shocks
Rigid Rear Axle
Rear leaf suspension
HD Rear anti-roll bar
HD rear leaf springs
HD Rear Shocks
Front and Rear Wheels 19.5 x 6.00″ (steel)
Tires:
225/70R19.5 BSW (6 all season) All traction
Continental Brand
Full Size Spare Tire & wheel

Air Conditioning
Cruise Control with steering wheel controls

Delivery Date:

12/4/2012

Department Name:

Gardner Lake FD

Location:

Salem, CT

Categories:

Ambulances
