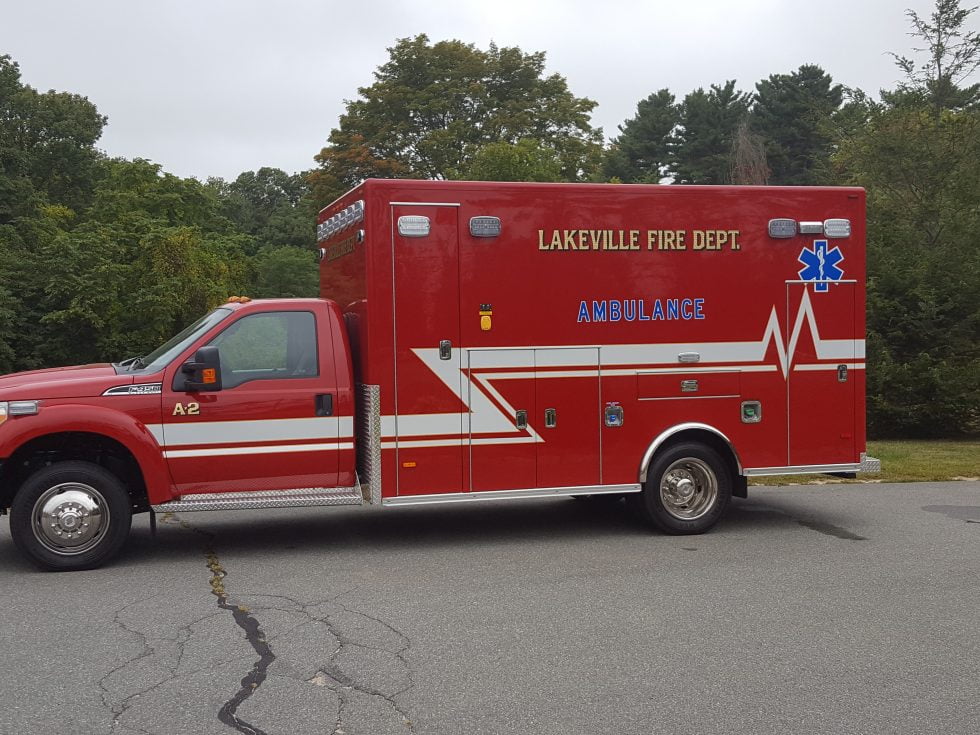

Type 1 Classic 170 on a F450 chassis

Description

Overall Vehicle Dimensions: Length: 302″ Width: 99″ Height: 115″ Exterior Modular Body Dimensions: Length: 170″ Width: 97″ Height: 94″ Interior Modular Body Dimensions: Length: 165″ Width: 90 3/4″ Height: 75″
ord F450 Chassis Cab Four Wheel DriveWheelbase 193″ – 108″ CA Dual Rear G.V.W. 16,500 lbs.
Powertrain/Functional:Engine: 6.7L “Powerstroke” Turbo Diesel V8 300hp @2800 RPM, 660 lbs torque @1600 RPMSingle Stage Turbo ChargerInstant Start Glow Plugs for quick engine startsDiesel Emissions Fluid 6 gallon tank – mounted behind frame rail on drivers sideIntelligent Oil Life Monitor Engine block heaterWater Pump with 125 gallons per minute flow rate  Transmission: Heavy Duty “TorqShift” Six Speed    Select Shift Automatic with overdrive
Electronic Shift on the Fly with automatic locking   front hubs with manual override.
Brakes – 4 wheel Anti-lock Braking SystemTraction Control – DRW Models
Fuel Capacity: 40 gallon single tank (aft axle)
Front Axle: 7,000 lb. Monobeam, Dana Super 60Rear Axle: 12,000 lb. Full Floating Dana S110
Suspension:Heavy Duty Front Coil Springs (7,000 lbs.)Rear Leaf Springs, main & auxiliary (12,000 lbs)Shock absorbers, front & rear 1.38″Stabilizer bar, front and rearPower SteeringSteering Damper   Instrumentation: multifunction switch message center – Gauges: Oil Pressure, Coolant Temperature, Trans Temp, w/Indicator Lights, Tachometer, Trip Odometer, Turbo boost, water in fuel warning light, low/contaminated diesel exhaust fluid warning lights, glow plug preheat indicator
Ambulance Prep Package – 47ARear axle 4.10 Limited Slip #X4NAuxiliary transmission oil coolerDual OEM HD Alternators (total 377 amps) 67BDual 750 CCA BatteriesStationary elevated idle control (SEIC)Operated Commanded Regeneration (OCR) #98R  Safety/Security:Driver/Passenger frontal and side air bag/curtainPassenger side air bag deactivation switchBelt-Minder – chime & flashing warning light on instrument panel if belts not buckledSafety Belts – color coordinated with height adjustment (front outboard seating positions only)SOS Post-Crash Alert SystemSecuri-lock Anti Theft Ignition
Tires:Front & Rear LT225/70R 19.5G All Season (6) #TFBSpare Tire: LT225/70R 19.5G (All Season)Wheels; 10 hole Disc, 19.5″ x 6″ Steel
Exterior Trim:Dual Electric HornsChrome Front Bumper & Grille SurroundMirrors: Black POWER Telescoping Trailer tow   w/Power-Heated Glass, integrated clearance lights and two way fold away Front Tow HooksLights – roof/marker clearance lightsUnder Hood Service LightDual Beam Jewel Effect Headlights
XLT Interior Cab Trim: #653AAir Conditioning Cloth Headliner, Map PocketsAM/FM Radio w/CD/Mp3 Player/Clock4.2” LCD Productivity Screen in IP ClusterOverhead Console with dual storage bin and map lightsInterval Windshield WipersTilt Steering Wheel/Speed Control – steering wheel mountedPower Windows/Door LocksColor-keyed Carpet / Floor MatsHeadlights on audible alarmDual overhead Map LightDaytime Running LightsFront seats, high series cloth – 40/20/40 #3S  Color Scheme:Exterior Color: Oxford White #Z1Interior Color: MEDIUM EARTH GRAY

Delivery Date:

9/7/2017

Department Name:

Lakeville FD

Location:

Lakeville, MA

Categories:

Ambulances
