    WALK IN RESCUE ON A SPARTAN LTD CHASSIS

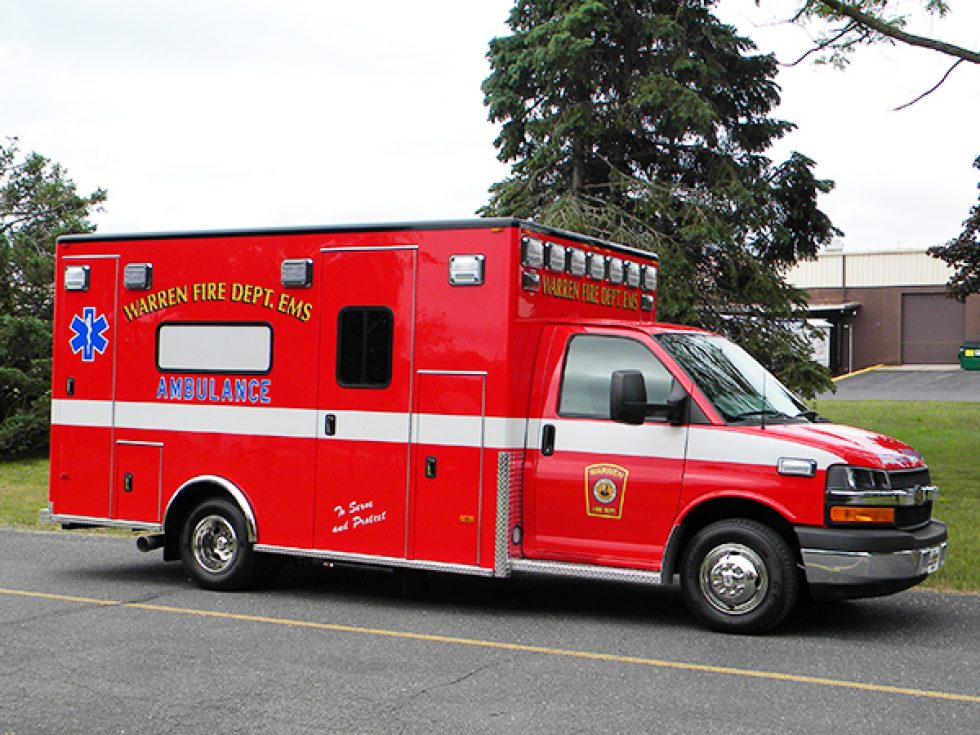

    Medallion on Chevy G4500 Chassis

    Description

    Chevy G4500 Chassis

    • 6.6L Duramax diesel engine 260 hp
    • Chevy 6-speed automatic transmission
    • Wheelbase 159” CA 100”
    • GVW 14,200
    • Front axle 4,600 lbs.
    • Overall payload 3,000 lbs.
    • Turning diameter – 54.5’ curb-to-curb
    • Ballast plates may be needed to offset front axle
    • Dual 145 amp alternators
    • DEF tank with fill on body
    • 57 gallon fuel tank capacity
    • Body length 170” – 72” headroom;
      overall length 23’-4”
    • Aisle width 48”
    • Floor height 33”
    • Medallion 170: Body Specs Vehicle Dimensions
      • Overall length 275” (22’-11”)
      • Overall height 103” (8’7”)
      • Body length 170” (14’-2”)
      • Interior headroom 68”

      Exterior

      • Extruded aluminum body framework
      • Aluminum body skin .125/5052H34
      • 4,000 lbs payload
      • Exclusive 8” set back front of body for extended seat recline
      • Side impact safety rail: body & door framework
      • Rubber donut mounting system
      • Trimark power locking automotive door handles with keyless entry
      • Five generous exterior compartments with sweepout construction
      • Left front full height oxygen compartment (20”)
      • Left side intermediate storage with (2) adjustable shelves
      • Left rear half high storage with (2) adjustable shelves
      • Right front inside/outside storage (20”w) with (2) adjustable shelves
      • Right rear full height backboard storage (18”)
      • Aluminum diamond plate compartment construction
      • Stainless door sills
      • Dri Dek compartment floors
      • Fully recessed lift up rear step w/dock bumpers
      • Diamond plate rub rails
      • Non-slip NFPA aluminum diamond plate running boards
      • Polished stainless fenderettes
      • Body undercoated
      • Sliding side door window with screen
      • Fixed rear door windows
      • Grabber rear door hold opens
      • Paint system for emergency vehicles with 10-year warranty
      • Belt line paint stripe
      • Stainless steel wheel inserts

      Interior

      • Sound Stop Insulation; floor, walls, doors
      • Thinsulate® insulation body walls, ceiling and entrance doors
      • Hinged cab to body door w/recessed pocket
      • Right front inside/outside storage
      • In/Out 1/2” acrylic full viewing hinged access doors
      • Squad bench right side, under seat storage, positive latch
      • Stainless steel armrest/recessed “D” bottles, head of squad bench
      • Storage cabinet right side above squad bench
      • Built in left side attendant seat
      • Drop down backrest for counter extension
      • Above counter switch pod life support station
      • Left front/rear 45 degree upper storage cabinet
      • 12 volt analog clock (12/24 hr)
      • 1” retaining edge on all counters
      • Lexan cabinet doors, all cabinets
      • Three piece interior door panels
      • Fully welded stainless steel grab rail over squad bench
      • Grab handles on rear entrance doors
      • 45 degree grab rail, side entrance door
      • 18” grab rails at rear doors
      • Seat belts with retractors (5)
      • Cot Mount 175-3 Single position
      • Recessed IV holders (2)
      • Flat seamless interior upholstery
      • Grab handles on rear entrance doors
      • 45 degree stainless grab rail, side entrance door
      • 18” stainless steel grab rails at rear doors
      • Seat belts with retractors (5)
      • Cot mount 175-3 single position
      • Recessed IV holders (2)
      • Flat seamless interior upholstery
      • Seats Inc 911 attendant seat
      • Congoleum no wax floor covering
      • Mini unistrut interior cabinets
      • Oxygen outlets (3)
      • Electric suction with disposable Sscort canister
      • Ziamatic oxygen bottle holder
      • Electrical

        • OEM alternator(s)
        • Dual batteries 1500 CCA
        • Pull out battery tray right front compartment
        • Voltage Monitoring; analog voltmeter and low voltage alarm and indicator
        • Ergonomically designed control console in cab
        • Electroluminescent backlit switch panels
        • Euro style rocker switches
        • Door open warning indicators
        • Parking brake warning indicators – audible and visual
        • Hella gooseneck light
        • OEM electronic throttle
        • Back-up alarm with auto reset
        • Hand held spotlight 100,000 CP
        • Electrical load manager/sequencer
        • Whelen 295 HFSI diagnostic siren
        • Dual 100 watt thru-bumper speakers
        • LED flashing lights (10) body
        • LED grille and intersection lights
        • Whelen LED stop/tail lights
        • Whelen LED populated arrow directional lights
        • Whelen scene lights (2) each side
        • Whelen scene lights (2) rear
        • Centrally ducted climate control system – digital thermostat
        • Dual intensity Weldon dome lights (6)
        • Fluorescent ceiling lights (4) 12 volt/110 volt activated
        • Two 12 volt outlets
        • Three antenna and radio power leads
        • Ceiling mounted speakers for cab radio
        • 20 amp shoreline w/ indicator light
        • Engine block heater wired to shoreline
        • Lighted GFI interior outlet
        • 30 amp battery charger/power converter
    Delivery Date:
    6/8/2015
    Department Name:
    Warren FD
    Location:
    Warren, MA
    Categories:
    • Ambulances
